17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido

17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido
17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido 17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido

Ampliación de imagen :  17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido

Datos del producto:
Lugar de origen: China
Nombre de la marca: Hydeb
Certificación: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Número de modelo: CFF17
Pago y Envío Términos:
Cantidad de orden mínima: 1 sistema
Precio: $ 20000-$50000/set
Detalles de empaquetado: Caso o plataforma de madera
Tiempo de entrega: 50 días laborables
Condiciones de pago: T/T
Capacidad de la fuente: 50 sistemas por año

17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido

descripción
Nombre de producto: 17 pulgadas en la línea caja de la filtración de Siliver CFF17 para el trato con aluminio fundido Especificación: 17 pulgadas
Número de placa: 2 Flujo clasificado de la filtración t/h: 15 T/H
Color: Siliver/azul o haber modificado para requisitos particulares Poder: 30KW
Resaltar:

17 pulgadas de filtros de aluminio del horno

,

filtros de aluminio del horno

,

caja del filtro del horno

17 Inches On Line Siliver CFF17 Filtration Box For Deal With Molten Aluminum

In line Siliver CFF Filtration Box for Purity Molten Aluminum

Molten Aluminum On Line Filtration Plate Purity Box


1. Filtration Box Introduce

The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.


2.  Filtration Box Specifications



Item Data Remark
Power Source Phase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 30
Heating Power kW 60
Rated Filtration Flow t/h 15
Filter Plate Size 17″*17″*2″
Filter Plate Porosity 60 PPI
Lining Preheating Heating Speed >40℃/hr
Temperature Control PLC+Atmosphere, aluminum liquid temperature control
Temperature Rising of the outer shell of the box ℃ ≤55 Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute


3. Filtration Box Types



Size of Plate 15’’ 17’’ 23’’
Type CFF-15 CFF-17 CFF-23

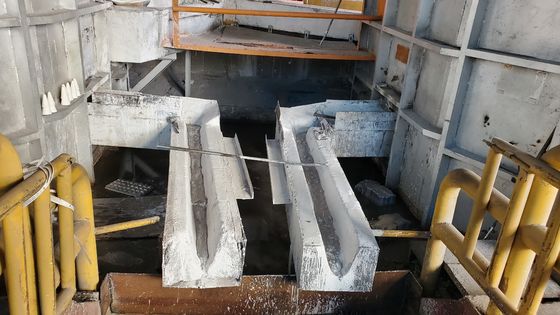

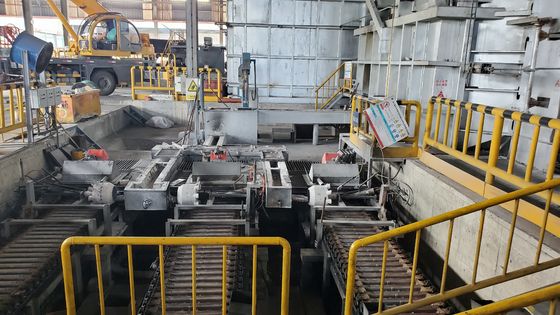

4.  Filtration Box Reference Show

 17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido 0


5. Company Profile

-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment

6. FRQ

Q1: I know nothing about this filtration box, what kind of filtration box I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this filtration box, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this filtration box during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



7. Shipping

17 pulgadas del alc 17 del horno de caja de aluminio de los filtros para el aluminio fundido 1
